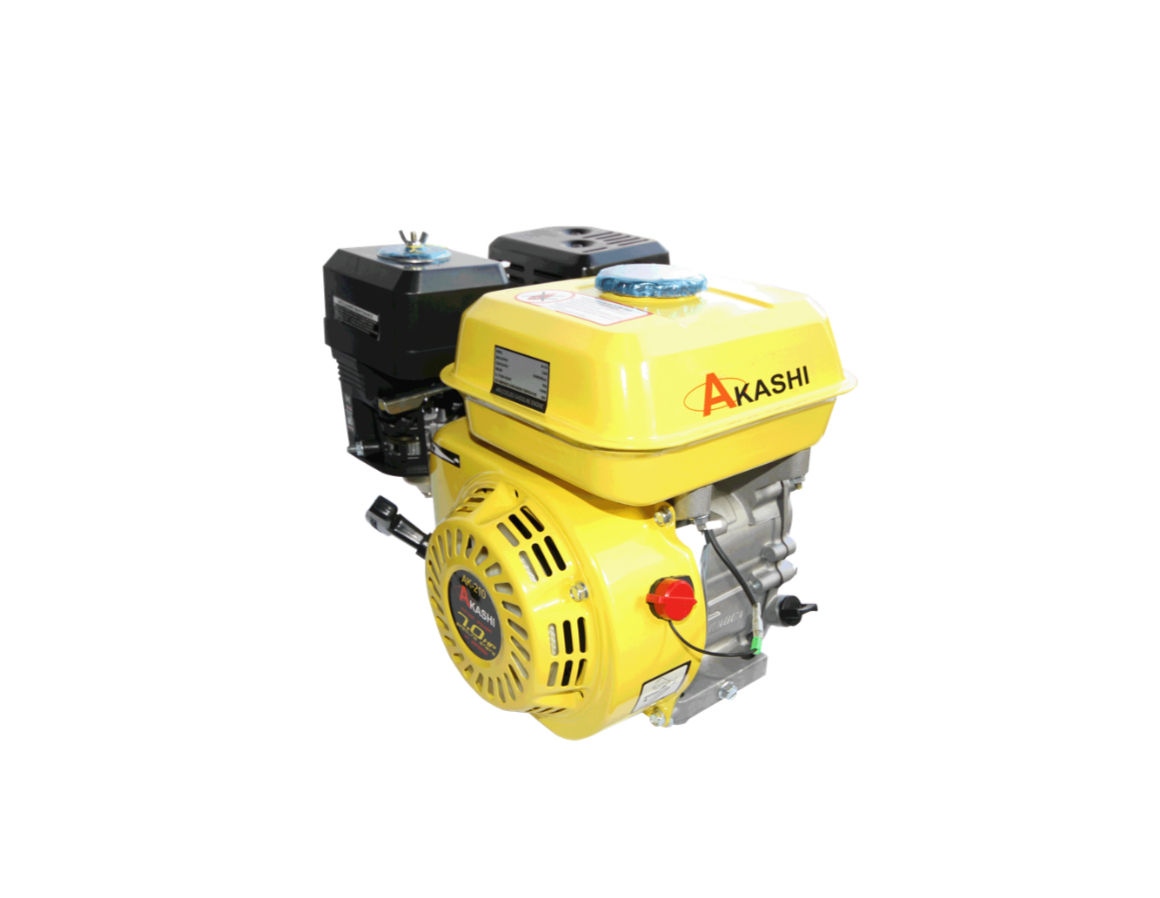

Gasoline Engine (Agricultural & Marine Type)
SKU: AK Series
AMTEC Tested!
Kindly inquire for more details and full specifications.
Product Specification
(HIGH SPEED)
Model Name
AK-200 AK-210 AK-270 AK-390 AK-420 Power (HP) 6.5 7.0 9.0 13.0 16.0 Displacement (cc) 196 208 270 389 420 Bore x Stroke (mm) 68 x 54 70 x 54 77 x 58 88 x 64 90 x 66 Oil Capacity (L) 0.6 0.6 1.1 1.4 1.4 Fuel Capacity (L) 3.6 3.6 6.0 6.0 6.0 Standard Torque (Nm) 10.87 23.77 31.43 43.67 47.53 Compression Ratio 8:5:1 8:5:1 8:5:1 8:5:1 8:5:1 Rated Speed (rpm) 3600 3600 3600 3600 3600 (LOW SPEED)
Model Name
AK-200 AK-210 AK-270 AK-390 AK-420 Standard Torque (Nm) - 11.88 15.72 21.84 23.77 Rated Speed (rpm) - 1800 1800 1800 1800
